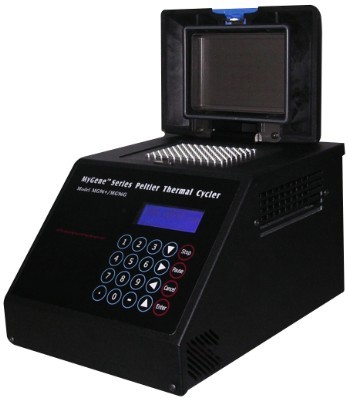

MG96+ Thermal Cycler |
Technical Specifications:
Technology: Peltier -based
Block Capacity: 96wells ×0.2ml + 77wells ×0.5ml
Block Temperature Range: 0°C ∼ 99.9°C
Max. Heating Rate: 3°C/sec
Max. Cooling Rate: 2°C/sec
Block Uniformity: ≤ ± 0.2°C
Block Accuracy: ≤ ± 0.2°C
Mode of Temperature Control: Sim-Tube & Block mode
Ramping Rate Adjustable: 0.1°C – 3°C
LCD: Large-size Blue LCD
Max. No. of storable programs: 125 Typical Programs
Max. No. Of Cycle: 99
Temp. Increment/Decrement: 0.1~10.0°C Touchdown PCR available
Time Increment/Decrement: 1~60s Long PCR available
Auto Pause: Yes
Auto Restart: Yes
Hold at 4°C: Yes, Forever
Running Time Display: Yes
File Named: Yes
Hot Cover Temperature: 105°C
Height of Heated Lid: Stepless Adjustment
Hot Cover Auto Shut-Off: When Block Temp. is below 30℃ or after finish running
Dimension (L×W×H): 315mm×240mm×275mm
Net Weight: 8.8kg
Wide Power Supply Range: Wide Range Power Supply 175V ~ 275V, 50-60Hz
Additional In-Situ Function: A set of additional in-situ plate available for In-situ PCR experiments
|
