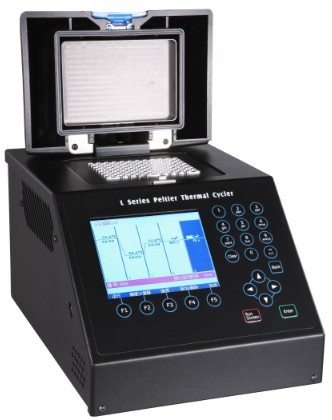

L96G Thermal Cycler |
Technical Specifications:
Heating and Cooling Technology: Newest Generation Peltier-based
Block Capacity: 96wells×0.2ml+77wells×0.5ml
Sample Capacity: 0.2ml PCR tubes,0.5ml PCR tubes, Strips, 96wells PCR plate, In-situ Plate
LCD Display: 5.7” graphical color display of protocols (320×240 pixel, 256 color)
Language Bilingual: English and Chinese
USB flash drive: Unlimited storage of protocols with USB flash drive
Communications: USB 2.0 Host and RS232
In-situ Function: Available with a set of additional In-situ Plate
Block Temperature Range: 0℃~100℃
Max. Block Heating Rate: Up to 3℃/sec
Max. Block Cooling Rate: Up to 2℃/sec
Block Uniformity: ≤±0.2℃(30sec after reach temperature point set)
Block Accuracy: ≤±0.2℃(35℃-100℃)
Display Resolution: 0.1℃
Mode of Temperature Control: Sim-tube & Block mode
Ramping Rate Adjustable: Yes
Gradient Accuracy: ≤±0.3℃(35℃-99.9℃)
Column Uniformity: ≤±0.3℃(30sec after reach temperature point set)
Gradient Range: 30℃~99.9℃
Temp. Differential Range: Max. 30℃
Gradient Capability: 12 Columns(Vertical)
Memory: Max. 120 programs onboard,Unlimited storage of protocols with USB flash drive
Max. Step: 30 Steps,multiple nesting cycle available
Max. Cycle: 100 Typical Cycles (multiple nesting 60000 cycles)
Time Increment/Decrement: 1~120sec, Long PCR available
Temp. Increment/Decrement: 0.1~10.0℃,Touchdown PCR available
Auto Pause: Yes
Auto Restart: Yes
Hold at 4℃: Yes, Forever
Running Time Display: Yes
Real Time Clock: Yes, Battery buffered
Height of Headed Lid: Steplessly Adjustable Lid, accommodates a wide range of PCR tubes and plates
Heated Lid Temperature: 30℃~105℃
Auto Shut-off: When Block Temp. is below 30℃ or after finish running
Input Power: Wide Range Power Supply 175V ~ 275V,50-60Hz
Power: Max. 600W
Dimension(L×W×H): 335×240×270mm
Net Weight: 9.8kg |
