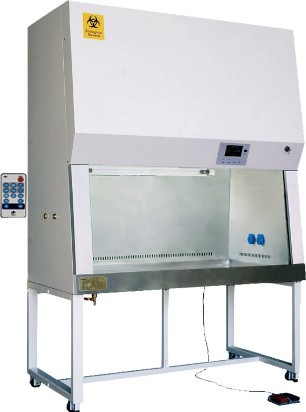

Model: BSC-1100II A2-X
The Class II biological safety cabinet is an open-front, ventilated cabinet. The Class II biological safety cabinet will provide personnel, environment and product protection.
Advantage:
1 Remote control. The operator need not to contact the biological safety cabinet directly, its favorable for preventing cross contamination. It also makes the control operation much easier and convenient.
2 Foot Switch. Within the range of the activity, we could use foot switch to adjust the height of the front panel. It is our unique design.
3 Work area surrounded by negative pressure.
4 Timer function
5 VFD display
6 Filter life inquiry
7 Motored fron window

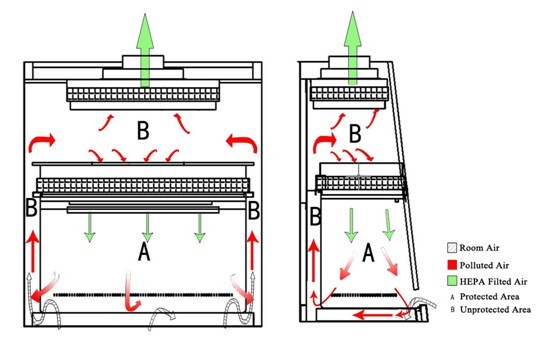

Air Flow Pattern and Protected Area：
Parameter:
|
Internal Size(mm) |
900× 600× 660 |
|
External Szie(mm) |
1100× 850× 2200 |
|
Tested Opening |
Safety Height ≤ 200 mm |
|
Max Opening |
400 mm |
|
Inflow Velocity |
0.53 m/s |
|
Downflow Velocity |
0.33 m/s |
|
Filter |
Two HEPA filters, 99.999% efficient(0.3 microns) |
|
Front Window |
Two-layer toughened glass, 5mm |
|
UV Lamp |
20W× 1 |
|
Fluorescent Lamp |
21W× 1 |
|
Lighting(Lux) |
≥ 1000 lux |
|
Power(W) |
760W |
|
Water and Gas Tap |
Water tap: 1 Gas tap: 1 |
|
Waterproof Socket |
2*250W(max) |
|
Display |
VFD display |
|
Control System |
Microprocessor |
|
Airflow System |
70% air recirculation, 30% air exhaust |
|
Material |
Work Table: 304 stainless steel |
|
|
Main Body: Cold rolled steel with anti-bacteria powder coating |
|
Base Stand |
Height: 635mm |
|
caster Wheel |
Directional wheel |
|
Electrical |
110/220V, 50~60Hz |
|
Net Weight(kg) |
240 |
|
Gross Weight(kg) |
290 |
|
Package(mm) |
1250× 1050× 1870 |
|
Standard Configuration |
Body, Remote control, Foot switch, UV lamp and Fluorescent Lamp, Base Stand |
|
Optional Accessory |
Armrest, Air curtain tester, Formalin fumigation sterilizer |
|
