Model: LBSC-1239

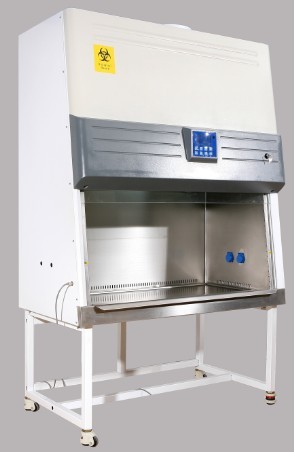

The Class II biological safety cabinet is an open-front, ventilated cabinet. The Class II biological safety cabinet will provide personnel, environment and product protection.
Advantage:
1 Remote control. The operator need not to contact the biological safety cabinet directly, its favorable for preventing cross contamination. It also makes the control operation much easier and convenient.
2 Foot Switch. Within the range of the activity, we could use foot switch to adjust the height of the front panel. It is our unique design.
3 Work area surrounded by negative pressure.
4 Timer function
5 VFD display
6 Filter life inquiry
7 Motored fron window

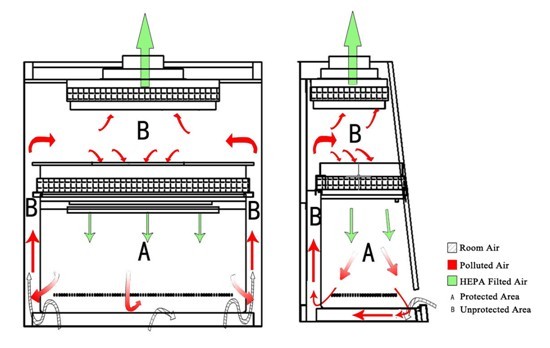

Air Flow Pattern and Protected Area：
Parameter:
|
Model |
LBSC-1239 |
|
External size(mm) |
1380× 750× 2290 mm |
|
Internal size(mm) |
1220× 600× 660 mm |
|
Tested Opening |
Safety Height ≤ 200 mm |
|
Working Opening |
400 mm |
|
Inflow Velocity |
0.53 m/s |
|
Down Flow Velocity |
0.33 m/s |
|
Filter |
Two HEPA filters, 99.999% efficient(0.3 microns) |
|
Front Window |
Motorized. Two-layer toughened glass > 5 mm |
|
UV lamp |
30 W*1 |
|
Fluorescent Lamp |
40 W*2 |
|
Lighting (Lux) |
≥ 1000 lux |
|
Power(W) |
600 W |
|
Water and Gas Tap |
Water Tap: 1 Gas Tap: 1 |
|
Waterproof Socket |
2*250W(max) |
|
Display |
LCD Display |
|
Control Sys tem |
Microprocessor |
|
Airflow System: |
70% air recirculation, 30% air exhaust |
|
Material |
Work zone: 304 stainless steel
Main Body: Cold rolled steel with anti-bacteria powder coating |
|
Base (optional) |
Height is 635 mm |
|
caster Wheel |
Universal Wheel |
|
Electrical |
110/220V, 50~60 Hz |
|
Net weight |
300 kg |
|
Gross weight |
400 kg |
|
Standard Configuration |
Body, Remote control, Foot switch, UV lamp and Fluorescent Lamp, Base stand |
|
